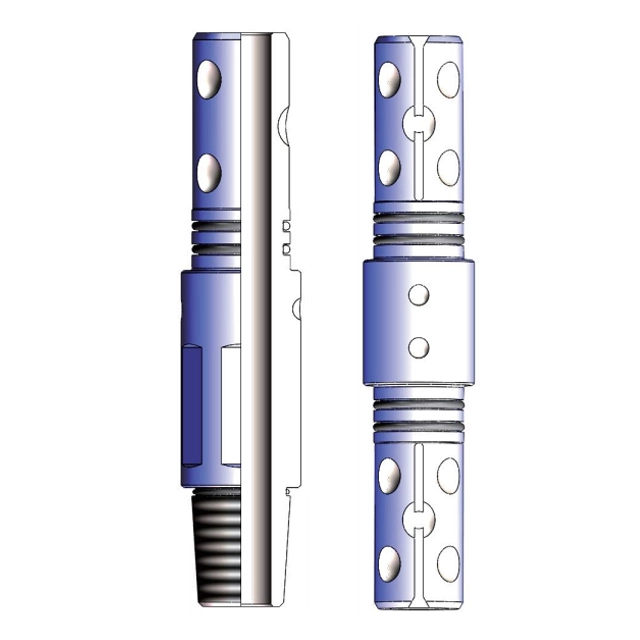

The dimple connector has the function of connecting the coiled tubing and downhole tools. By connecting the connector to the end of the coiled tubing using a dedicated pressing tool, torque can be effectively transmitted. The outer diameter of the connector is generally consistent with the outer diameter of the matched coiled tubing, and the outer diameter size can also be adjusted according to customer requirements.
Features:
1.Double sealing ring design ensures reliable sealing;
2.Small outer diameter size and good passability;
3.Over-welding groove design to reduce the amount of weld grinding in coiled tubing;
4.Supporting special installation tools, coiled tubing weld reamer is quick and convenient to operate.
Size | OD | ID | WP | Tensile Strength | Connection |
1.5″ | Ø38.1mm | Ø18.0mm | 70MPa | 12.0T | 1"AMMT |
1.75″ | Ø44.5mm | Ø18.0mm | 70MPa | 15.0T | 1"AMMT |
2″ | Ø50.8mm | Ø21.0mm | 70MPa | 20.0T | 1.5"AMMT |
2.375″ | Ø60.3mm | Ø25.4mm | 70MPa | 25.0T | 1.5"AMMT |
